WKKZ Spherical roller bearing 24020 CC/W33

Description: Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, an annular groove in the outer ring with three lubrication holes and a normal radial internal clearance.

 Part number :  24020 CC/W33 Double row Spherical roller bearings

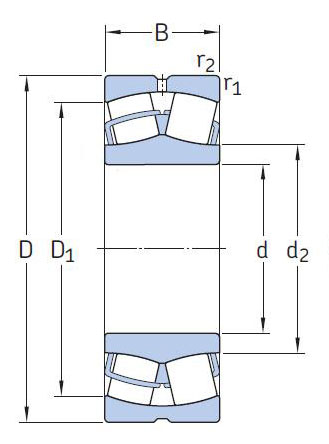

 Boundary dimensions in mm:

 Bore diameter d  100 mm

 Outside diameter D  150 mm

 Width diameter B  50 mm

 Weight : 3.15 kgs

 Series: 240 CC

24020 CC/W33 Self-aligning roller bearings with cylindrical bore

24020 CCK30/W33 Self-aligning roller bearings with cone bore
